ED-M12:Fanless Mini PC

Standard Parameters - M12 Mini PCCPUIntel Elkhart Lake-J6412/J6413 ProcessorMemoryDDR4L-2666/2933/3200MHz, 2*SO-DIMM memory s

Send Inquiry
Download

Features


Standard Parameters - M12 Mini PC
CPU
Intel Elkhart Lake-J6412/J6413 Processor
Memory
DDR4L-2666/2933/3200MHz, 2*SO-DIMM memory slots 1.2V supports up to 64GB
Graphics Card
Integrated Intel HD Graphics 620 core graphics
Network Card
4*Intel® WGI210-AT
Storage
2*SATA (where the SATA2 signal shares layout with MINI-PCIe), 1.M.2 (Key-M, 2280, NVME SSD)
Expansion Interface
Provide a MINIPCIE slot that supports wireless network cards (USB signal)/4G modules/MSATA hard drives.
I/O Parameters

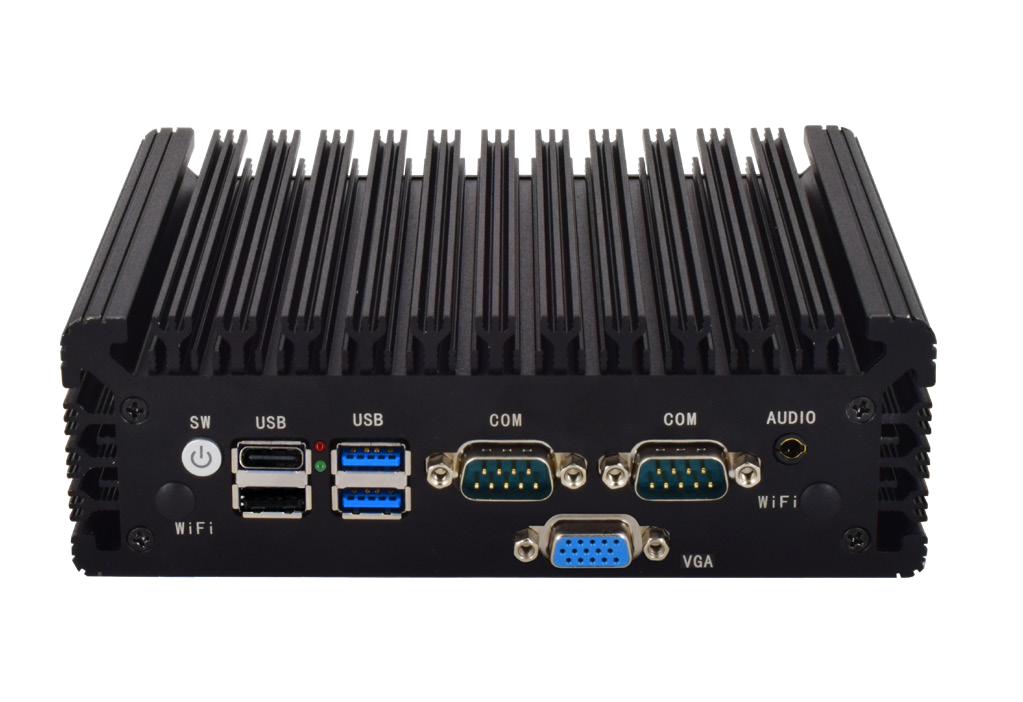

1*PWR, 1*USB2.0, 1*TYPE-C，2*USB3.0,2*COM，1*Audio，2*WIFI,1*VGA

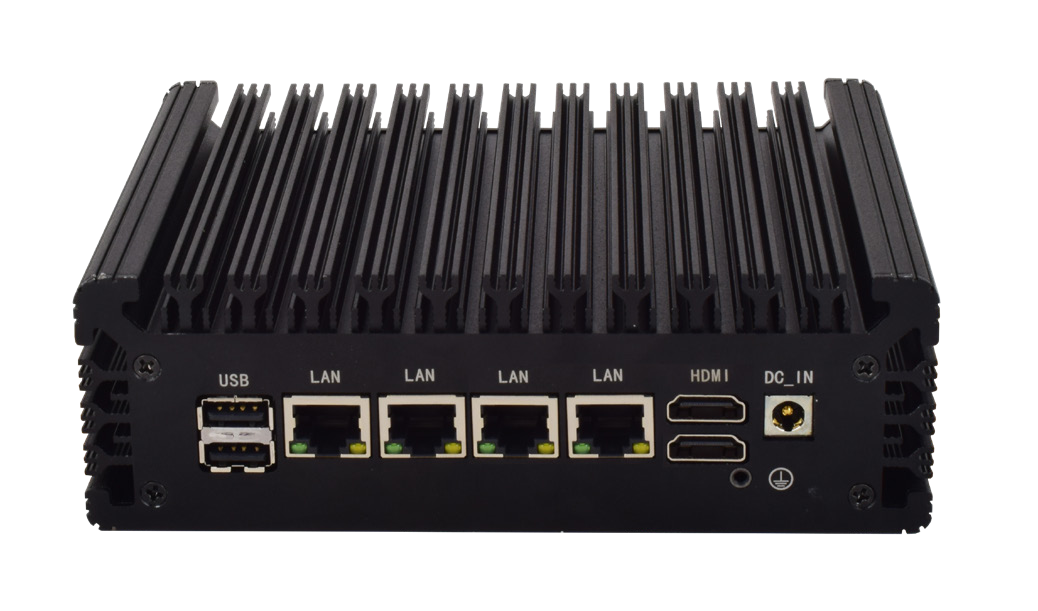

Back Panel Interface: 2*USB2.0; 4*LAN; 2HDMI; 1*DC12V power input interface
Power Supply
Supports DC 12V direct current input; Interface (2.5 5525)
Chassis Parameters
Color: Black Material: Aluminum alloy Heat dissipation: Fanless passive cooling

Overall dimensions: 16.3*12.5*5.3cm

Packing box dimensions: 29.5209cm

Temperature and
Humidity
Operating Temperature: 0°C~55°C (32°F~131°F)
Operating Humidity: 10%~95% @40°C non-condensing
Storage Temperature: -40°C~+55°C (-40°F~176°F)
Operating System
Supported Systems: Windows 10, Linux


Services:


1. All products have been tested and 100% inspection before shipment.

2. Support design your logo and imprint on products and let your logo shine anywhere.

3. Offer customized packaging services.

4. We can provide OEM/ODM services based on customer's requirements.

5. We own the best after-sale services. If any problems happen, our team will do their best to solve it as soon as possible.


About Product packaging

MetInfo enterprise content manager system | MetInfo CMS

The product uses yellow corrugated boxes by default. We support OEM services.

( If you need customized color box packaging, please consult our customer service.)
