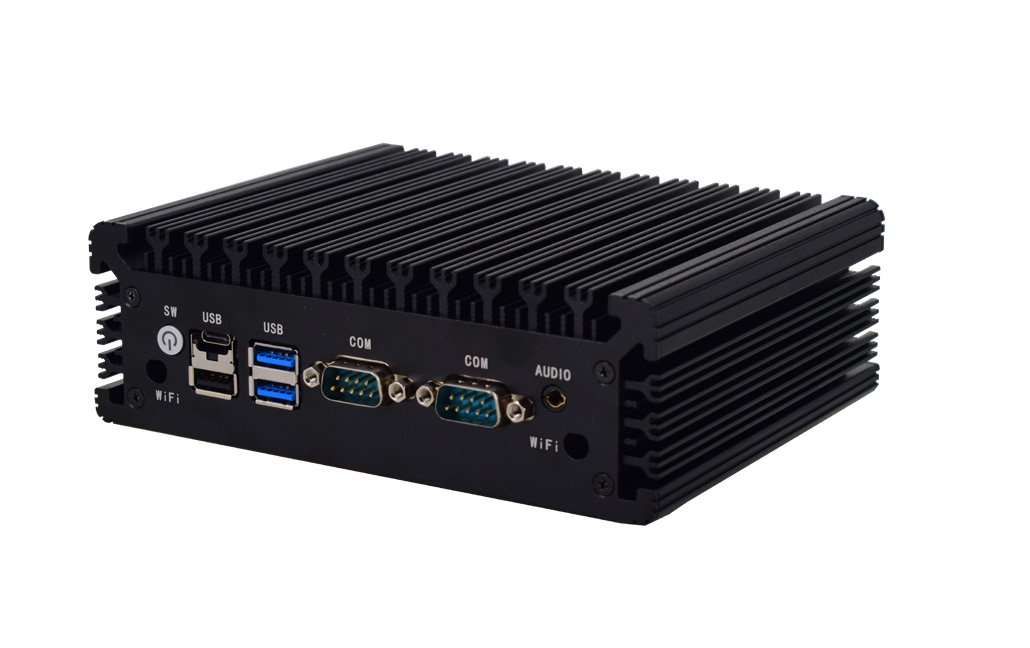

MN100：Mini PC Intel Alder Lake-N Fanless Embedded Industrial Computer

MN100：Mini PC Intel Alder Lake-N Fanless Embedded Industrial ComputerStandard Parameters - MN100 Mini PCCPUIntel Alder Lake-N

Send Inquiry

Features

Standard Parameters - MN100 Mini PC
CPU	Intel Alder Lake-N N100/N95/I3-N305 series processors
Memory	Supports DDR4-3200MHz, 1*SO-DIMM memory slot, 1.2V, maximum support of 16GB.
Graphics Card	Integrated Intel® HD Graphics
Network Card	Onboard 2*Intel I226-V Gigabit Ethernet controller chips
Storage	1SATA 3.0 ，1M.2(Key-M, 2280, PCIe x2 NVMe/ SATA, SSD)
Expansion Interface	1MINI-PCIE (supports 4G module/USB signal WIFI), 1M.2 (Key-E, 2230, supports wifi/Bluetooth)

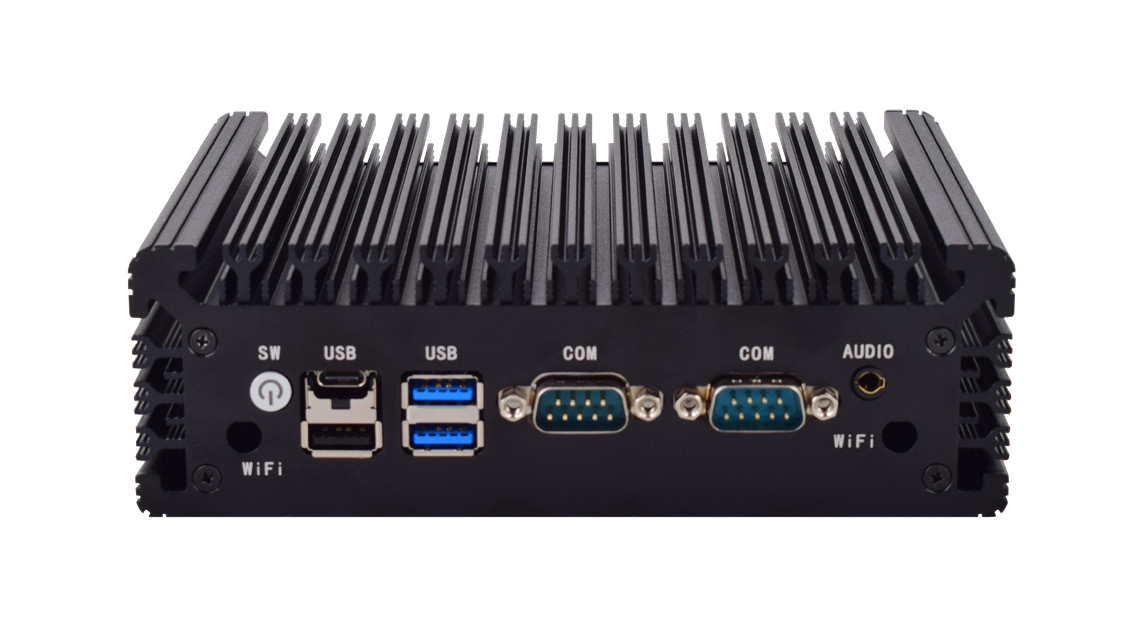

I/O Parameters	1PWR, 1TYPE-C,3USB3.0, 2COM，1*Audio

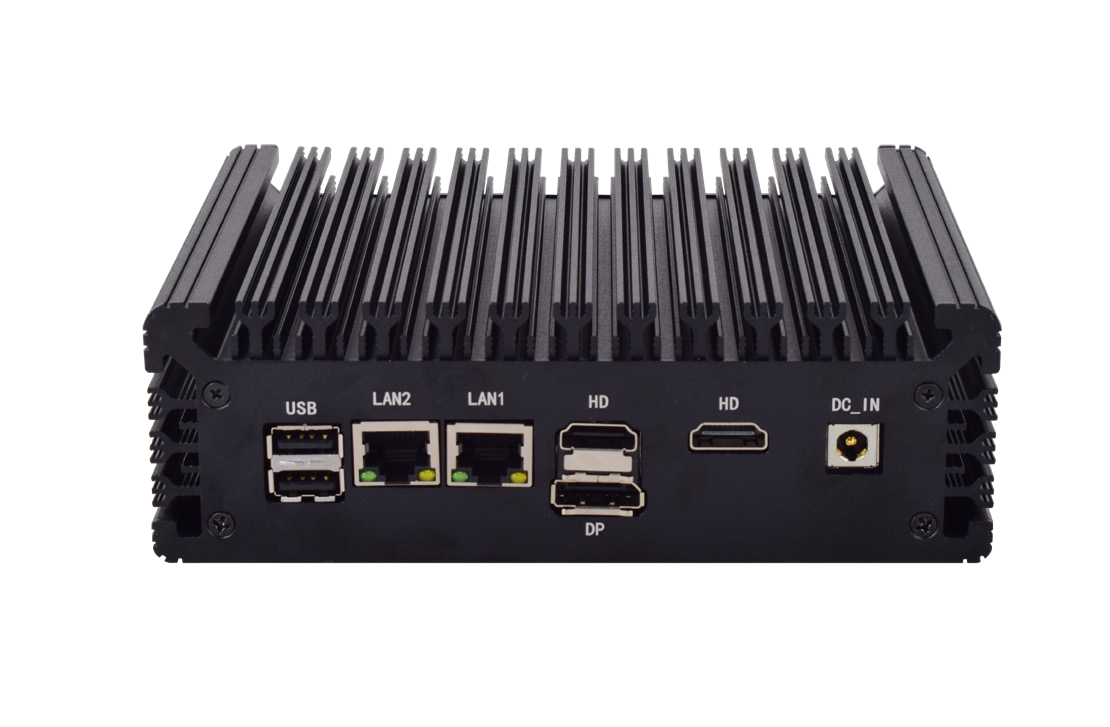

I/O Parameters	Back Panel Interface: 2USB2.0; 2LAN; 1DP; 2HDMI; 1*DC12V power input interface
Power Supply	Supports DC 12V direct current input; Interface (2.5 5525)
Chassis Parameters	Color: Black Material: Aluminum alloy Heat dissipation: Fanless passive cooling
Chassis Parameters	Overall dimensions: 16.312.55.3cm Packing box dimensions: 29.5209cm
Temperature and Humidity	Operating Temperature: 0°C~55°C (32°F~131°F)
	Operating Humidity: 10%~95% @40°C non-condensing
	Storage Temperature: -40°C~+55°C (-40°F~176°F)
Operating System	Supported Systems: Windows 10, Linux

Services:

1. All products have been tested and 100% inspection before shipment.

2. Support design your logo and imprint on products and let your logo shine anywhere.

3. Offer customized packaging services.

4. We can provide OEM/ODM services based on customer's requirements.

5. We own the best after-sale services. If any problems happen, our team will do their best to solve it as soon as possible.

About Product packaging

MetInfo enterprise content manager system | MetInfo CMS

The product uses yellow corrugated boxes by default. We support OEM services.

( If you need customized color box packaging, please consult our customer service.)
