M67：Intel 6th/7th Generation Fanless Embedded Industrial Computer

M67：Intel 6th/7th Generation Fanless Embedded Industrial ComputerStandard Parameters - M67 Mini PCCPUIntel Sky Lake-U Kaby La

Send Inquiry

Features

Standard Parameters - M67 Mini PC
CPU	Intel Sky Lake-U Kaby Lake-U Core i3 i5 i7 processors
Memory	DDR4L-2666/2933/3200MHz, 2*SO-DIMM memory slots 1.2V supports up to 64GB
Graphics Card	Integrated with Intel HD Graphics 620 integrated graphics
Network Card	Onboard 2 RTL8111H 10/100/1000 adaptive Gigabit Ethernet cards
Storage	Supports one M.2 slot and 2.5-inch SATA storage
Expansion Interface	Provides a MINIPCIE slot, supporting half-length wireless network cards or 4G modules.

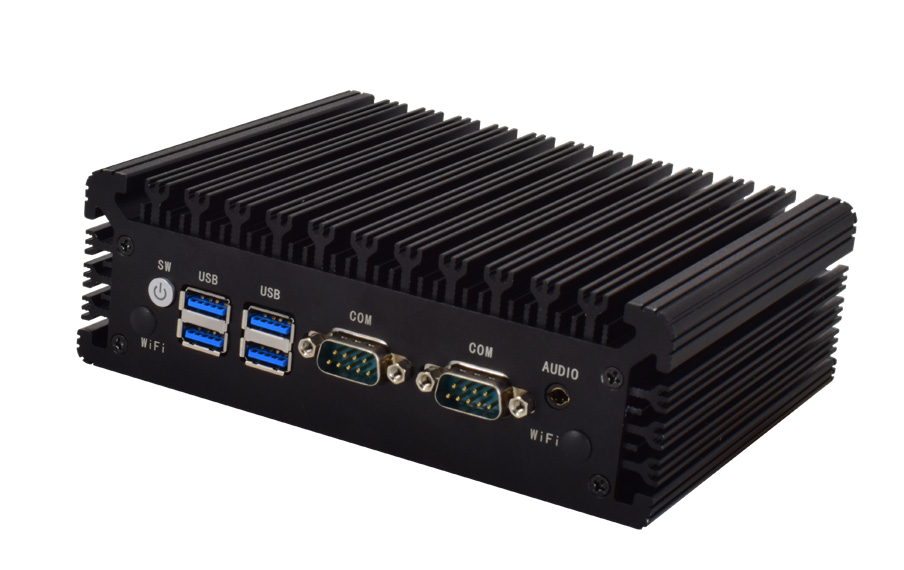

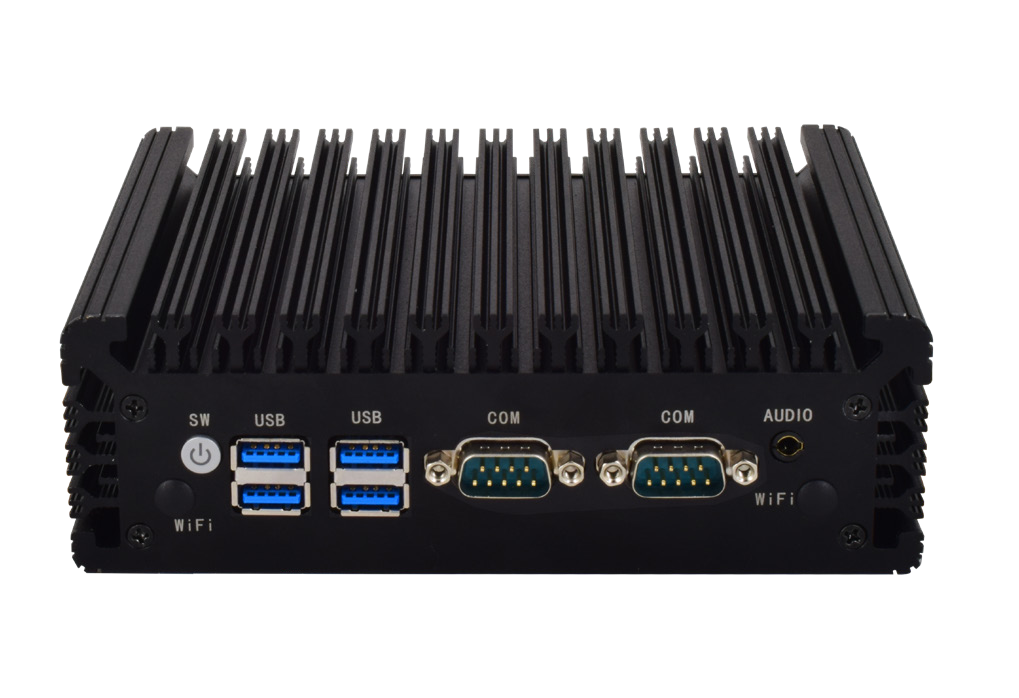

I/O Parameters	1PWR, 2USB2.0, 2USB3.0,2COM，1*Audio

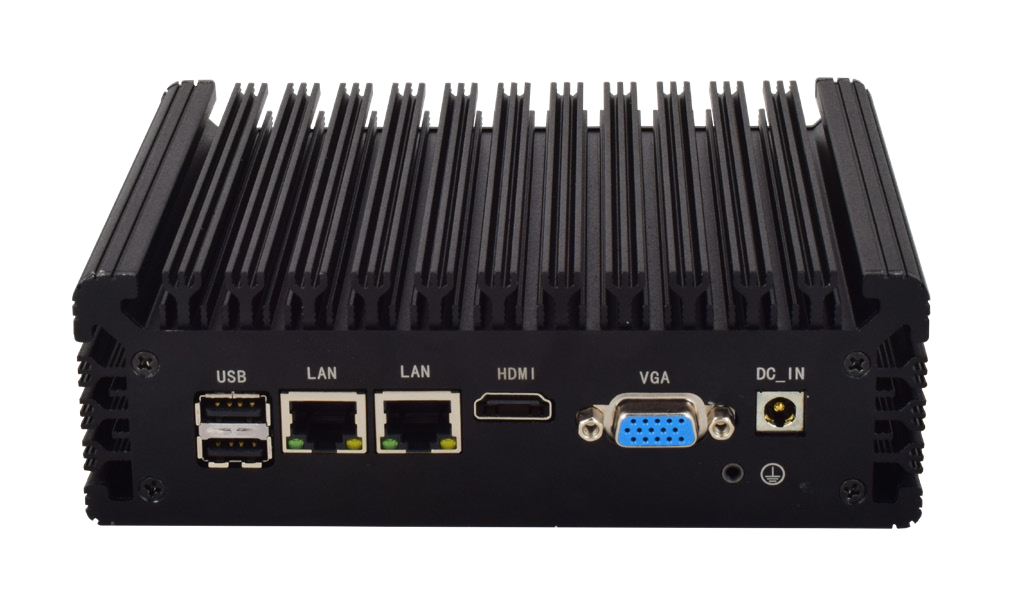

I/O Parameters	Back Panel Interface: 2USB2.0; 2RJ45 Ethernet port; 1VGA/HDMI; 1HDMI; 1*DC12V power input interface
Power Supply	Supports DC 12V direct current input; Interface (2.5 5525)
Chassis Parameters	Color: Black Material: Aluminum alloy Heat dissipation: Fanless passive cooling
Chassis Parameters	Overall dimensions: 16.312.55.3cm Packing box dimensions: 29.5209cm
Temperature and Humidity	Operating Temperature: 0°C~55°C (32°F~131°F)
	Operating Humidity: 10%~95% @40°C non-condensing
	Storage Temperature: -40°C~+55°C (-40°F~176°F)
Operating System	Supported Systems: Windows 10, Linux

Services:

1. All products have been tested and 100% inspection before shipment.

2. Support design your logo and imprint on products and let your logo shine anywhere.

3. Offer customized packaging services.

4. We can provide OEM/ODM services based on customer's requirements.

5. We own the best after-sale services. If any problems happen, our team will do their best to solve it as soon as possible.

About Product packaging

MetInfo enterprise content manager system | MetInfo CMS

The product uses yellow corrugated boxes by default. We support OEM services.

( If you need customized color box packaging, please consult our customer service.)
