ED-M19：J1900 Mini PC

ED-M19：J1900 Mini PCStandard Parameters - M19 Mini PCCPUIntel Celeron J1900 quad-core 2.00GHz processor, maximum turbo freque

Send Inquiry

Features

Standard Parameters - M19 Mini PC
CPU	Intel Celeron J1900 quad-core 2.00GHz processor, maximum turbo frequency 2.42GHz, 2MB cache, 10W
Memory	Provides 1 SO DIMM memory slot, supporting DDR3L memory up to 8GB maximum.
Graphics Card	Integrated Intel HD Graphics core graphics
Network Card	Onboard 2 Realtek 8111H 10/100/1000M adaptive Gigabit Ethernet controllers
Storage	Provides 1 MSATA slot.
Expansion Interface	Provides 1 MINI PCI-E slot, supporting half-size wireless network card installation or 4G module.

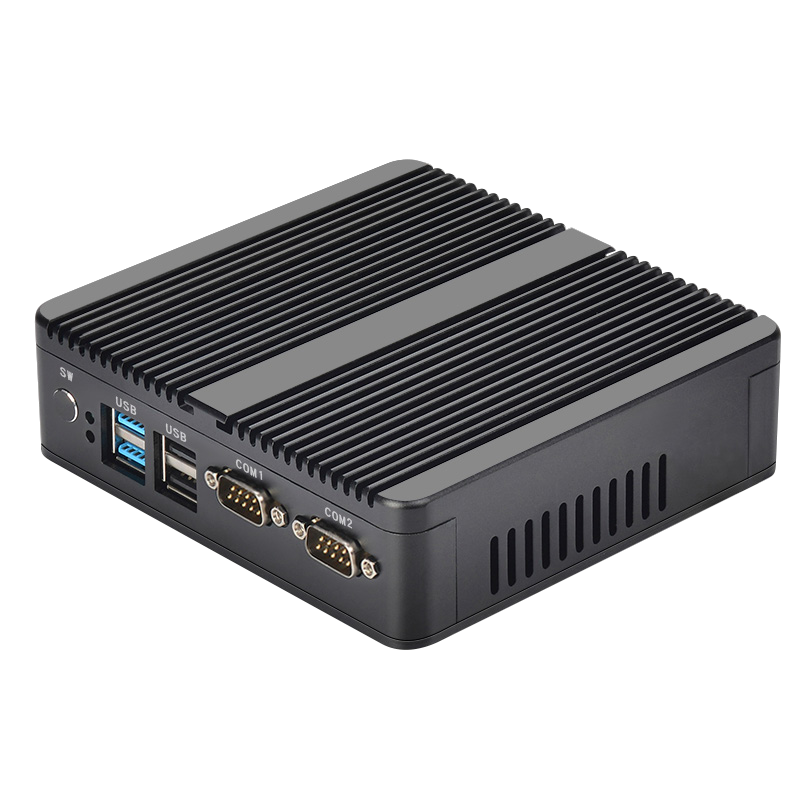

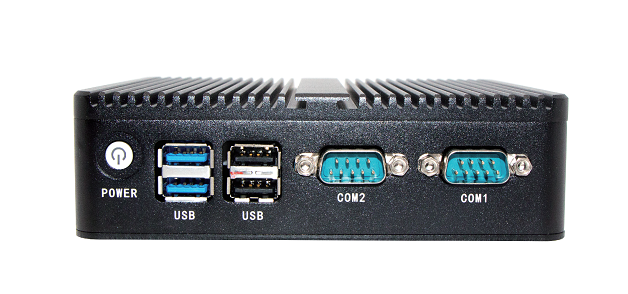

I/O Parameters	Switch surface interface:1Power switch; 3USB 2.0; 1USB3.0; 2COM (COM1-232/485 optional, COM2-232)

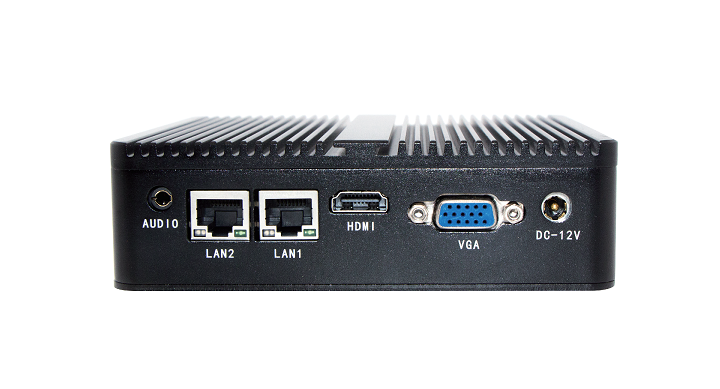

I/O Parameters	Back Panel Interface: 1Audio; 2RJ45 Ethernet port; 1HDMI; 1VGA; 1*DC12V power input interface
Power Supply	Supports DC 12V power input
Chassis Parameters	Color: Black Material: High-quality aluminum alloy Thermal design: Fanless passive cooling
Chassis Parameters	Earless 13612740mm Packaging box dimensions: 200170120mm
Temperature and Humidity	Operating Temperature: 0°C~55°C (32°F~131°F)
	Operating Humidity: 10%~95% @40°C non-condensing
	Storage Temperature: -40°C~+55°C (-40°F~176°F)
Operating System	Supported Systems: Windows 7/8/10, Linux

Services:

1. All products have been tested and 100% inspection before shipment.

2. Support design your logo and imprint on products and let your logo shine anywhere.

3. Offer customized packaging services.

4. We can provide OEM/ODM services based on customer's requirements.

5. We own the best after-sale services. If any problems happen, our team will do their best to solve it as soon as possible.

About Product packaging

MetInfo enterprise content manager system | MetInfo CMS

The product uses yellow corrugated boxes by default. We support OEM services.

( If you need customized color box packaging, please consult our customer service.)
